Press-Locked Gratings

Galvanized press-locked panels

Panels with banding bars
Mesh 30 X 30
BB	Dimensions in mm¹	Foot traffic	Light vehicle
30 / 2	200 x 1000	x	x
	250 x 1000	x	x
	300 x 500	x	x
	300 x 1000	x	x
	400 x 500	x
	400 x 1000	x
	500 x 500	x
	500 x 1000	x
	600 x 500	x
	600 x 1000	x
	700 x 1000	x
	800 x 500	x
	800 x 1000	x
	900 x 1000	x
	1000 x 500	x
	1000 x 600	x
	1000 x 700	x
	1000 x 800	x
	1000 x 900	x
	1000 x 1000	x
	1000 x 1250	x
	1000 x 2000	x
	1100 x 1000	x
	1200 x 500	x
	1200 x 600	x
	1200 x 1000	x
	1250 x 1000	x
	1300 x 1000	x
	2000 x 1000	*
30 / 3	1000 x 1000	x
	1000 x 1500	x
	1200 x 1000	x
	1400 x 1000	x
	1500 x 500	x
	1500 x 1000	x

*requires an intermediate support to take the pedestrian load.

Panels with banding bars
Mesh 30 X 30 double crescent serrations
BB	Dimensions in mm¹	Foot traffic
30 / 2	600 x 1000	x
	800 x 1000	x
	1000 x 1000	x

Panels with banding bars
Mesh 50 X 100
BB	Dimensions in mm¹	Heavy load
90 / 8	950 x 1000	x

Panels with banding bars
Mesh 30 X 10
BB	Dimensions in mm¹	Foot traffic
30 / 2	600 x 1000	x
	700 x 1000	x
	800 x 1000	x
	900 x 1000	x
	1000 x 600	x
	1000 x 700	x
	1000 x 800	x
	1000 x 900	x
	1000 x 1000	x
	1200 x 1000	x
30 / 3	1500 x 1000	x

Panels with banding bars
Mesh 30 X 19
BB	Dimensions in mm¹	Foot traffic
30 / 2	800 x 1000	x
	1000 x 1000	x
	1200 x 1000	x
30 / 3	1500 x 1000	x

Panels with banding bars
Mesh 19 X 19
BB	Dimensions in mm¹	Foot traffic
30 / 2	500 x 1000	x
	800 x 1000	x
	1000 x 1000	x
	1200 x 1000	x
30 / 3	1500 x 1000	x

Panels with banding bars
Mesh 19 X 30 double saw-toothed serration
BB	Dimensions in mm¹	Foot traffic	Light vehicle
30 / 3	1000 x 1000	x
30 / 3	1500 x 1000	x

Panels with banding bars
Mesh 30 X 30 double half-moon serration
BB	Dimensions in mm¹	Foot traffic
30 / 2	500 x 1000	x
	600 x 1000	x
	700 x 1000	x
	800 x 1000	x
	900 x 1000	x
	1000 x 1000	x
	1200 x 1000	x
30 / 3	1000 x 1000	x
	1200 x 1000	x
	1500 x 1000	x

Available in 10 to 15 days

Untreated and galvanized press-locked mats

Untreated mats without banding bars
Mesh	BB	Dimensions in mm¹
30 x 30	30 / 2	3000 x 994
30 x 30	30 / 3	3000 x 994
30 x 19	30 / 2	3000 x 994
30 x 10	30 / 2	3000 x 994
19 x 19	30 / 2	3000 x 994
	40 / 2	3000 x 994

Galvanized mats without banding bars
Mesh	BB	Dimensions in mm¹
30 x 30	30 / 2	3000 x 994
30 x 30	30 / 3	3000 x 994
30 x 10	30 / 3	3000 x 994
19 x 19	30 / 2	3000 x 994

Untreated mats without banding bars
roh einfache Halbmond-Auszackung
Mesh	BB	Dimensions in mm¹
30 x 10	30 / 2	3000 x 994
30 x 10	30 / 3	3000 x 994

Untreated mats without banding bars
Double half-moon serration
Mesh	BB	Dimensions in mm¹
30 x 30	30 / 2	3000 x 994
30 x 30	30 / 3	3000 x 994
19 x 30	30 / 2	3000 x 994

Available in 10 to 15 days

Galvanized press-locked stair treads

Press-locked stair treads
Mesh 30 X 30
BB	Dimensions in mm¹	Drilling center distance
25 / 2	500 x 200	120
	500 x 240	120
	600 x 200	120
30 / 2	600 x 230	120
	600 x 240	120
	600 x 260	150
	600 x 270	150
	600 x 305	180
	600 x 330	210
	700 x 200	120
	700 x 230	120
	700 x 240	120
	700 x 260	150
	700 x 270	150
	700 x 305	180
	800 x 200	120
	800 x 230	120
	800 x 240	120
	800 x 260	150
	800 x 270	150
	800 x 305	180
	800 x 330	210
	900 x 230	120
	900 x 240	120
	900 x 260	150
	900 x 270	150
	900 x 305	180
	900 x 330	210
	1000 x 230	120
	1000 x 240	120
	1000 x 260	150
	1000 x 270	150
	1000 x 305	180
30 / 3	800 x 270	150
	1000 x 270	150
	1000 x 305	180
	1200 x 270	150
	1200 x 305	180
35 / 2	900 x 200	120
	900 x 270	150
	1000 x 200	120
	1000 x 240	120
	1000 x 270	150
	1000 x 305	180
40 / 2	1000 x 330	210
	1200 x 200	120
	1200 x 240	120
	1200 x 330	210
	1400 x 330	210
40 / 3	1200 x 270	150
	1200 x 305	180

Press-locked stair treads
Mesh 30 X 30 simple serration
BB	Dimensions in mm¹	Drilling center distance
35 / 3	1000 x 305	180
40 / 3	1200 x 305	180

Press-locked stair treads
Mesh 30 X 30 double half-moon serration
BB	Dimensions in mm¹	Drilling center distance
30 / 2	600 x 240	120
	600 x 270	150
	800 x 270	150
30 / 3	1000 x 270	150
35 / 2	700 x 240	120
	700 x 270	150
	800 x 240	120
40 / 2	900 x 240	120
	900 x 270	150
	1000 x 240	120
	1000 x 270	150
	1200 x 240	120
	1200 x 270	150
40 / 3	1200 x 305	180

Press-locked stair treads
Mesh 30 X 19
BB	Dimensions in mm¹	Drilling center distance
30 / 2	800 x 270	150
	800 x 330	210
	900 x 330	210
	1000 x 330	210
40 / 2	900 x 330	210
40 / 2	1200 x 330	210
40 / 3	1400 x 330	210

Press-locked stair treads
Mesh 19 X 19
BB	Dimensions in mm¹	Drilling center distance
30 / 2	600 x 330	210
	700 x 330	210
	800 x 330	210
	900 x 330	210
	1000 x 330	210
	1000 x 350	240
35 / 2	1200 x 330	210
40 / 2	1000 x 330	210
	1200 x 350	240
	1400 x 350	240
50 / 2	1400 x 330	210

Press-locked stair treads
Mesh 30 X 10
BB	Dimensions in mm¹	Drilling center distance
25 / 2	600 x 240	120
25 / 2	600 x 270	150
30 / 2	600 x 270	150
	700 x 240	120
	700 x 270	150
	800 x 240	120
	800 x 270	150
30 / 3	1000 x 305	180
35 / 2	900 x 240	120
	900 x 270	150
	1000 x 240	120
	1000 x 270	150
	1000 x 305	180
40 / 2	1200 x 240	120
40 / 2	1200 x 270	150
40 / 3	1200 x 270	150
	1200 x 305	180

Press-locked stair treads
Mesh 30 x 10 simple half-moon serration
BB	Dimensions in mm¹	Drilling center distance
30 / 2	800 x 240	120
30 / 3	1000 x 270	150
30 / 3	1000 x 305	180
35 / 2	1000 x 270	150
40 / 3	1200 x 305	180
40 / 3	1250 x 305	180

Press-locked stair treads
Mesh 19 X 30 double saw-toothed serration
BB	Dimensions in mm¹	Drilling center distance
30 / 3	800 x 300	180

Anti slip nose
Finish	Dimensions in mm¹
Untreated	3000
Untreated	6000

Press-locked stair treads
Mesh 30 X 30
simple anti-slip + nosing 70 mm
BB	Dimensions in mm¹	Drilling center distance
30 / 2	800 x 270	150
35 / 2	900 x 270	150
35 / 2	1000 x 305	180
40 / 3	1200 x 305	180

Available in 10 to 15 days

(1) First dimension = bearing bar direction

Stainless steel

Stainless steel press-locked mats and stair treads

Press-locked panels with banding bars
Mesh 30 X 30
BB	Dimensions in mm¹	Foot traffic
30 / 2	500 x 1000	x
	800 x 1000	x
	1000 x 1000	x

Press-locked panels with banding bars
Mesh 30 X 19
BB	Dimensions in mm¹	Foot traffic	Light vehicle
30 / 2	1000 x 1000	x

Press-locked panels with banding bars
Mesh 19 X 19
BB	Dimensions in mm¹	Foot traffic	Light vehicle
30 / 2	1000 x 1000	x

Untreated mats without banding bars
Stainless steel 304 untreated
Mesh	BB	Dimensions in mm¹
30 x 30	30 / 2	3000 x 994
30 x 19	30 / 2	3000 x 994

Press-locked treads stainless steel 304 DKP
Mesh 30 X 30
BP	Dimensions in mm¹	Drilling center distance
30 / 2	800 x 300	180
30 / 2	1000 x 300	180

¹ The first value represents the bearing direction

Aluminium

Aluminium press-locked panels

Panels with banding bars
Mesh 30 X 30
BB	Dimensions in mm¹	Foot traffic	Light vehicle
40 / 2	1000 x 1000	x

Panels with banding bars
Mesh 30 X 19
BB	Dimensions in mm¹	Foot traffic	Light vehicle
40 / 2	1000 x 1000	x

Panels with banding bars
Mesh 19 X 19
BB	Dimensions in mm¹	Foot traffic	Light vehicle
40 / 2	1000 x 1000	x

¹ The first value represents the bearing direction

Press-Welded Gratings

Press-welded panels and stair treads

Press-welded panels with banding bars
Mesh 30 X 30
BB	Dimensions in mm¹	Foot traffic
30 / 2	500 x 1000	x
	600 x 1000	x
	700 x 1000	x
	800 x 1000	x
	900 x 1000	x
	1000 x 1000	x
	1200 x 1000	x
	2000 x 1000	x
30 / 3	1500 x 1000	x

Press-welded panels with banding bars
Mesh 30 X 19
BB	Dimensions in mm¹	Foot traffic	Light vehicle
30 / 2	2000 x 1000	x

Press-welded stair treads
Mesh 30 X 30
BB	Dimensions in mm¹	Drilling center distance
30 / 2	600 x 230	120
	600 x 240	120
	700 x 230	120
	700 x 240	120
	800 x 230	120
	800 x 240	120
	800 x 260	150
	800 x 330	210
	900 x 230	120
	900 x 240	120
	900 x 305	180
	900 x 330	210
	1000 x 230	120
	1000 x 240	120
	1000 x 260	150
30 / 3	1000 x 270	150
30 / 3	1000 x 305	180
40 / 3	1200 x 270	150
40 / 3	1200 x 305	180

Press-welded stair treads
30 X 19
BB	Dimensions in mm¹	Drilling center distance
30 / 2	600 x 260	150
	700 x 230	120
	800 x 230	120
	800 x 240	120
	800 x 260	150
	800 x 270	150
	900 x 230	120
	900 x 330	210
	1000 x 230	120
	1000 x 240	120
	1000 x 260	150

Press-welded mats and half-mats

Mesh 30 X 30
BB	Dimensions in mm¹	Galvanized	Untreated
25 / 2	3050 x 1000		•
25 / 2	6100 x 1000	•	•
30 / 2	3050 x 1000	•	•
30 / 2	6100 x 1000	•	•
30 / 3	3050 x 1000	•
30 / 3	6100 x 1000	•	•
40 / 2	6100 x 1000	•
40 / 3	6100 x 1000	•	•

Mesh 19 X 40
BB	Dimensions in mm¹	Galvanized	Untreated
25 / 2	3050 x 1000		•
30 / 2	6100 x 1000	•	•
30 / 3	3050 x 1000	•
30 / 3	6100 x 1000	•	•

Mesh 19 X 19
BB	Dimensions in mm¹	Galvanized	Untreated
30 / 2	3050 x 1000	•	•
30 / 2	6100 x 1000	•	•

Mesh 30 X 40
BB	Dimensions in mm¹	Galvanized	Untreated
30 / 3	3050 x 1000	•
30 / 3	6100 x 1000	•

Mesh 30 X 19
BB	Dimensions in mm¹	Galvanized	Untreated
30 / 2	3050 x 1000	•	•
30 / 2	6100 x 1000	•	•
30 / 3	6100 x 1000	•	•

Galvanized press-welded mats

Galvanized press-welded mats
half-moon anti-slip serration
Mesh	BB	Dimensions in mm¹
30 x 100	25 / 5	6100 x 1000
30 x 100	30 / 5	6100 x 1000

¹ The first value represents the bearing direction

FRP

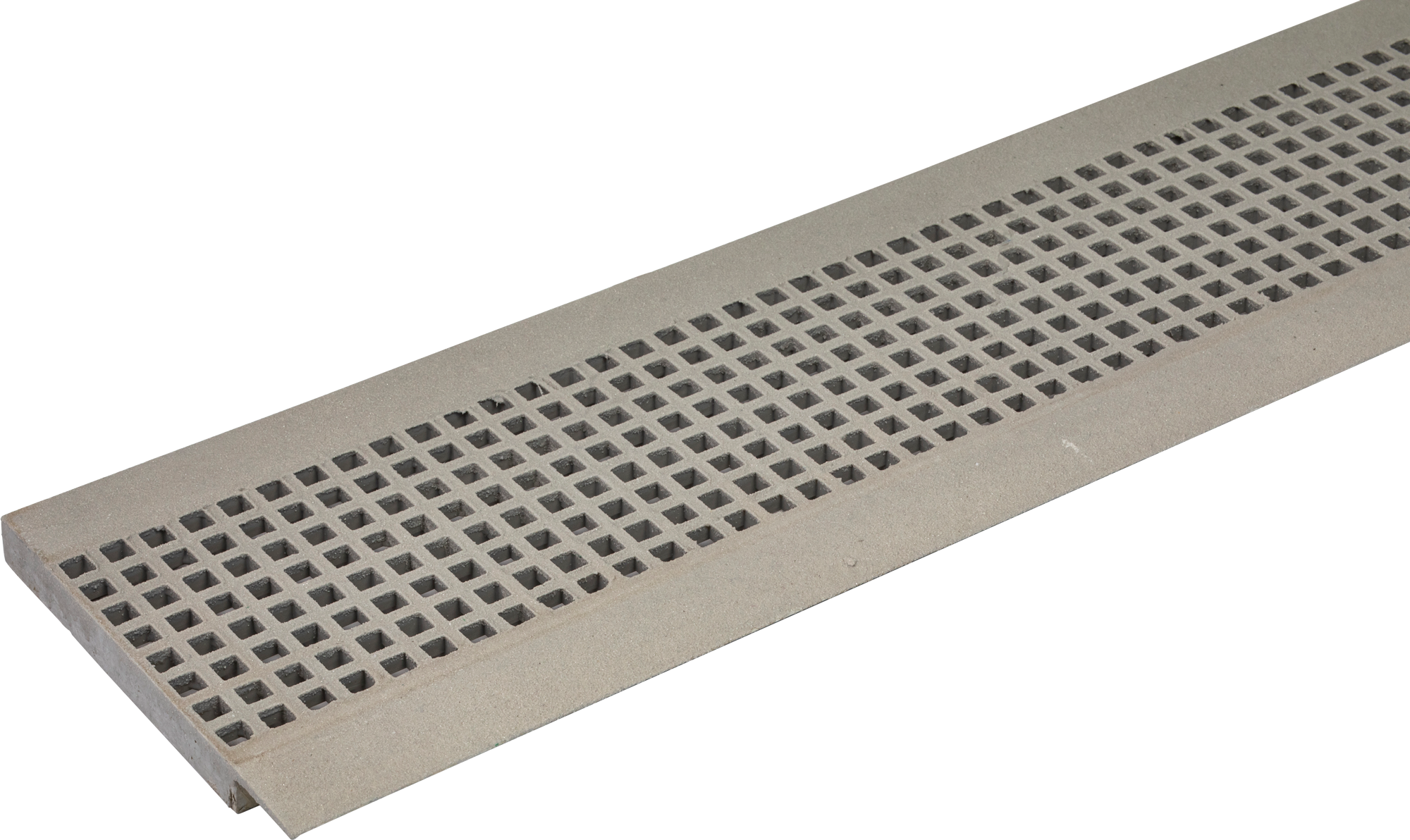

FRP mats and stair treads

FRP mats isophthalic
GREY RAL 7035
Height in mm	Mesh	Dimensions in mm	Gritted	Concave
20	19 x 19	1000 x 2026	•
	19 x 19	1000 x 3055	•
	19 x 19	1220 x 3055	•
25	19 x 19	198 x 2026	•
	19 x 19	198 x 3055	•
	19 x 19	312 x 2026	•
	19 x 19	312 x 3055	•
	19 x 19	1000 x 2026	•
	19 x 19	1000 x 3055	•
	19 x 19	1220 x 3055	•
30	19 x 19	1000 x 2026	•	•
	19 x 19	1000 x 3055	•	•
	19 x 19	1220 x 3055	•	•
38	19 x 19	1000 x 2026	•
38	19 x 19	1220 x 3055	•
30	38 x 38	1000 x 2026	•	•
	38 x 38	1000 x 3055	•	•
	38 x 38	1220 x 3055	•	•
38	38 x 38	1000 x 2026	•
38	38 x 38	1000 x 3055	•
30	26 x 26	1000 x 3075	•
50	50 x 50	1220 x 3055		•

FRP mats vinylester
ORANGE RAL 2002
Height in mm	Mesh	Dimensions in mm	Gritted	Concave
30	19 x 19	1000 x 2026	•
30	38 x 38	1000 x 2026	•

FRP mats isophthalic
GREEN RAL 6010
Height in mm	Mesh	Dimensions in mm	Gritted	Concave
30	19 x 19	1000 x 2026	•	•
	19 x 19	1000 x 3055	•	•
	19 x 19	1220 x 3055	•	•
38	19 x 19	1000 x 3055	•
30	38 x 38	1000 x 2026	•	•
	38 x 38	1000 x 3055	•	•
	38 x 38	1220 x 3055	•	•
38	38 x 38	1000 x 2026	•	•
	38 x 38	1000 x 3055	•
	38 x 38	1220 x 3055	•
30	26 x 26	1000 x 3075	•

FRP mats isophthalic
BEIGE RAL 1001
Height in mm	Mesh	Dimensions in mm	Gritted
20	19 x 19	1000 x 2026	•
20	19 x 19	1000 x 3055	•
25	19 x 19	1000 x 2026	•
	19 x 19	1000 x 3055	•
	19 x 19	1220 x 3055	•
30	19 x 19	1000 x 2026	•
30	19 x 19	1000 x 3055	•

FRP mats isophthalic
ANTHRACITE RAL 7012
Height in mm	Mesh	Dimensions in mm	Gritted
25	19 x 19	1000 x 2026	•
	19 x 19	1000 x 3055	•
	19 x 19	1220 x 3055	•

Sanded FRP full gratings
Colour	Height in mm	Mesh	Dimensions in mm	Gritted	Concave
GREY RAL 7035	30 + 3	38 x 38	1000 x 3055	•
GREEN RAL 6010	30 + 3	38 x 38	1000 x 3055	•

FRP stair treads

FRP stair treads with gritted nosing
GREY RAL 7035
Height in mm	Mesh	Dimensions in mm	Concave
38	38 x 38	800 x 275	•
	38 x 38	1000 x 275	•
	38 x 38	1000 x 350	•
	19 x 19	800 x 275	•
	19 x 19	1000 x 275	•
	19 x 19	1000 x 350	•

FRP stair treads with gritted nosing
GREEN RAL 6010
Height in mm	Mesh	Dimensions in mm	Concave
38	38 x 38	800 x 275	•
	38 x 38	1000 x 275	•
	38 x 38	1000 x 350	•
	19 x 19	800 x 275	•
	19 x 19	1000 x 275	•
	19 x 19	1000 x 350	•

FRP grating with incorporated support bracket

FRP grating with incorporated support bracket
GREY RAL 7035
Height in mm	Mesh	Dimensions in mm	Gritted
25	19 x 19	203 x 2026	•
	19 x 19	203 x 3055	•
	19 x 19	261 x 2026	•
	19 x 19	261 x 3055	•
	19 x 19	317 x 2026	•
	19 x 19	317 x 3055	•

FRP Profiles

	Dimensions in mm	Lenght in mm	GREY RAL 7035	ANTHRAZIT RAL 7012	BEIGE RAL 1001	YELLOW RAL 1003	GREEN RAL 6010
Profile H	200 x 200 x 12	6000	•
Profile I	150 x 100 x 8	3000	•
Profile U	150 x 50 x 9	6000	•
Profile U	60 x 50 x 5	6000	•
Angle	75 x 75 x 9	6000	•
	50 x 50 x 6	3000	•
	30 x 30 x 5	3000	•		•
Beveled angle	25 x 50 x 5	3000	•	•	•
Gritted angle	30 x 30 x 3	3000	•			•	•
Square tube	50 x 50 x 5	6000	•

Elements for polyester railings

	Dimensions in mm	Lenght in mm
Hand rail	W 58 x H 62	6000
Under rail	inner Ø 22 - outer Ø 32	6000
Base panel	W 100	6000
Square post	W 50 x H 50 - thickness 7,5	6000
Floor base	L 153 x W 126 x H 133
Wall mount	L 170 x W 60 x H 120
90° bend fitting for hand rail	L 150 x 150 x W 49 x H 40
90° bend fitting for under rail	L 105 x 105 x inner Ø 21.7 – outer Ø 30
Articulated fitting for hand rail	L 50 x W 50 x H 143
Fitting for base panel	L 100 x W 50 x H 50 x thickness 6
Plug for hand rail	L 6 x W 60 x H 63
Plug for under rail	L 14 x inner Ø 22 - outer Ø 35

Rubber Gratings

GEI Rubber
Top
Height in mm	Dimensions in mm
22	500 x 1000
	800 x 1200
	1000 x 1500

GEI Rubber
Octa
Height in mm	Dimensions in mm
22	1000 x 1500

GEI Rubber
Access
Height in mm	Dimensions in mm
10	Roll 1000 x 10000
10	1200 x 1830
22	1000 x 1484

GEI Rubber
Honey Comfort Standard
Height in mm	Dimensions in mm
14	910 x 1510

GEI Rubber
Honey Comfort Nitril
Height in mm	Dimensions in mm
14	910 x 1510

GEI Rubber
Slic Comfort
Height in mm	Dimensions in mm
14	910 x 910

GEI Rubber
Bub Comfort
Height in mm	Dimensions in mm
14	900 x 1200
14	915 x 1525

GEI Rubber
Sports
Height in mm	Dimensions in mm
16	910 x 910
28	910 x 910

GEI Rubber
Barn (Version 1)
Height in mm	Dimensions in mm
17	1220 x 1830

GEI Rubber
Barn (Version 2)
Height in mm	Dimensions in mm
25	1140 x 1830

GEI Rubber
Clean (Version 1)
Height in mm	Dimensions in mm
28 (edge)	400 x 800

GEI Rubber
Clean (Version 2)
Height in mm	Dimensions in mm
28 (edge)	400 x 800

Safety Grids

Safety Grids
PS-CRANT
Lenght in mm	Width in mm	Height / Thickness in mm	Galvanized	Untreated	Stainless steel	Aluminium
4020	120	50 / 2	•
	180	50 / 2	•
	240	50 / 2	•	•	•
	240	50 / 2,5				•
	300	50 / 2	•	•	•
	300	50 / 2,5				•
	360	50 / 2	•
	480	50 / 2	•

Safety Grids
PS-PERF
Lenght in mm	Width in mm	Height / Thickness in mm	Galvanized	Untreated	Stainless steel	Aluminium
4020	200	50 / 2	•	•
	250	50 / 2	•	•	•
	250	50 / 2,5				•
	300	50 / 2	•	•	•
	300	50 / 2,5				•

Safety Grids
PS-OFF
Lenght in mm	Width in mm	Height / Thickness in mm	Galvanized	Untreated
4020	300	50 / 2	•

Safety Grids
PS-OVA
Lenght in mm	Width in mm	Height / Thickness in mm	Galvanized
4020	200	50 / 2	•
	250	50 / 2	•
	300	50 / 2	•

Safety Grids
PS-FERM
Lenght in mm	Width in mm	Height / Thickness in mm	Galvanized	Untreated
4020	250	50 / 2	•
4020	300	50 / 2	•

Safety Grids
PS-PMR
Lenght in mm	Width in mm	Height / Thickness in mm	Galvanized	Untreated
3996	200	50 / 2	•	•
	250	50 / 2	•	•
	300	50 / 2	•	•

Safety Grids
PS-PMR
with galvanized nosing
Lenght in mm	Width in mm	Height / Thickness in mm	Galvanized	Untreated
3996	330	50 / 2	•
4200	330	75 / 2	•

Stair treads in safety grids

Galvanized stair treads
PS-CRANT
Lenght in mm	Width in mm	Height / Thickness in mm	Galvanized
800	300	50 / 2	•
1000	300	50 / 2	•
1200	300	50 / 2	•

Galvanized stair treads
PS-PERF
Lenght in mm	Width in mm	Height / Thickness in mm	Galvanized
800	300	50 / 2	•
1000	300	50 / 2	•
1200	300	50 / 2	•

PS-PMR stair treads
with galvanized nosing
Lenght in mm	Width in mm	Height / Thickness in mm	Galvanized
800	330	50 / 2	•
900	330	50 / 2	•
1000	330	50 / 2	•
1200	330	50 / 2,5	•
1400	330	75 / 2	•

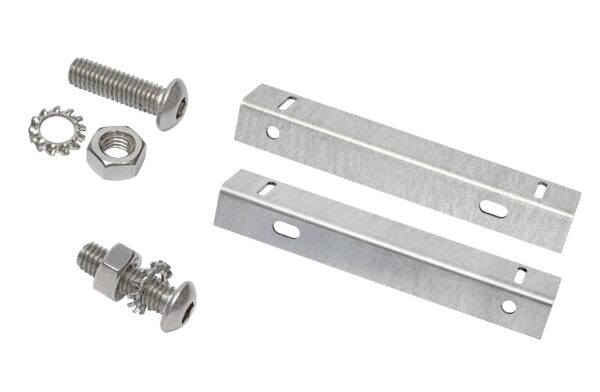

PS-PMR step kit

Kit composed of:
2 brackets: left and right
Types of fixing: M6 ISO 7380 screw + star washers + ISO 4032 nut

Safety Grids
Lenght in mm	Width in mm	Height / Thickness in mm	Max. recommended step length
3996	250	50 / 2	1100 mm
4200	330	75 / 2	1600 mm

Ladder rungs range

1 row
Lenght in mm	Width in mm	Untreated	Stainless steel
2000	25	•	•

2 rows
Lenght in mm	Width in mm	Untreated	Stainless steel
2000	50	•

Grating for shelving

4 dimensions of galvanized pressed gratings in stock according to the load with a safety coefficient of 1.5.


	Light load	Medium-heavy load	Medium-heavy+ load	Heavy load
Dimensions¹	995 x 890	995 x 890	995 x 890	995 x 890
Mesh	100 x 60	100 x 60	90 x 60	60 x 100
BB	25 x 2	35 x 2	40 x 2	40 x 2
Load capacity	265 daN/m² correspond to 236 daN/panel	525 daN/m² correspond to 467 daN/panel	840 daN/m² correspond to 747 daN/panel	1070 daN/m² correspond to 952 daN/panel

¹ The first value represents the bearing direction.

Fastening & accessories

Fastening and accessories

Steel fastening system
GALVANIZED FASTENING SYSTEMS	Mesh
Stainless steel standard retaining fastening system with clip	19 x 19
	30 x 10
	30 x 19
	30 x 30
	40 x 19
Stainless steel standard retaining fastening system with washer	30 x 30
Universal fastening system	30 x 30 min.
Stainless steel double retaining fastening system with clip	19 x 19
Stainless steel double retaining fastening system with clip	30 x 30
Upper clip	19 x 19
	30 x 10
	30 x 19
	30 x 30
	40 x 19
	40 x 40
Universal upper clip	30 x 30 min.
Stainless steel standard retaining fastening system with clip	19 x 19
	30 x 30
Stainless steel upper clip	19 x 19
Stainless steel upper clip	30 x 30


ADJUSTABLE FEET	Insert thickness in mm	Insert dimensions in mm	Foot height in mm
For steel grating (mesh 30 x 30 and 19 x 19)	20	25 x 25	40 or 70


SAFETY GRID FASTENING SYSTEM
Type S attachment without olive for PS OFF – PS PERF grille
Type S attachment without olive for PS PMR grating
Polyester olive for PS CRANT grid


ADJUSTABLE PAD	Height adjustment in mm
For gratings	90 to 145 •

FRP Gratings
FIBERGLASS GRATINGS FASTENING SYSTEMS	Mesh
Retaining fastening system with clip	38 x 38
Retaining fastening system with clip	19 x 19
Saintless steel retaining fastening system with clip	38 x 38
Saintless steel retaining fastening system with washer	19 x 19
Stainless steel upper clip	38 x 38


STAIR TREADS SUPPORT	Mesh
FRP gratings	38 x 38
FRP gratings	19 x 19
Grid attachment on the running board
Stainless steel hex nut for bracket

Accessories
Resin set: 1 dose of resin + 1 dose of hardener


ADJUSTABLE FEET	Insert thickness in mm	Insert dimensions in mm	Foot height in mm
FRP gratings (Mesh 38 x 38 and 19 x 19) and press-locked gratings made of steel (mesh 30 x 30)	20	35 x 35	40 or 70


SCREW	Ø in mm	Lenght in mm
Self-tapping screw galvanized TH	6,3	50
	6,3	60
	6,3	70
Self-tapping screw stainless steel 304 TH	6,3	50
	6,3	60

Available within 10 to 15 days

Call +49 (0)68 05 / 91 39 25-0

Contact

English

Stock programme

Galvanized press-locked panels

Panels with banding bars Mesh 30 X 30

Panels with banding bars Mesh 30 X 30 double crescent serrations

Panels with banding bars Mesh 50 X 100

Panels with banding bars Mesh 30 X 10

Panels with banding bars Mesh 30 X 19

Panels with banding bars Mesh 19 X 19

Panels with banding bars Mesh 19 X 30 double saw-toothed serration

Panels with banding bars Mesh 30 X 30 double half-moon serration

Untreated and galvanized press-locked mats

Untreated mats without banding bars

Galvanized mats without banding bars

Untreated mats without banding bars roh einfache Halbmond-Auszackung

Untreated mats without banding bars Double half-moon serration

Galvanized press-locked stair treads

Press-locked stair treads Mesh 30 X 30

Press-locked stair treads Mesh 30 X 30 simple serration

Press-locked stair treads Mesh 30 X 30 double half-moon serration

Press-locked stair treads Mesh 30 X 19

Press-locked stair treads Mesh 19 X 19

Press-locked stair treads Mesh 30 X 10

Press-locked stair treads Mesh 30 x 10 simple half-moon serration

Press-locked stair treads Mesh 19 X 30 double saw-toothed serration

Anti slip nose

Press-locked stair treads Mesh 30 X 30 simple anti-slip + nosing 70 mm

Stainless steel press-locked mats and stair treads

Press-locked panels with banding bars Mesh 30 X 30

Press-locked panels with banding bars Mesh 30 X 19

Press-locked panels with banding bars Mesh 19 X 19

Untreated mats without banding bars Stainless steel 304 untreated

Press-locked treads stainless steel 304 DKP Mesh 30 X 30

Aluminium press-locked panels

Panels with banding bars Mesh 30 X 30

Panels with banding bars Mesh 30 X 19

Panels with banding bars Mesh 19 X 19

Press-welded panels and stair treads

Press-welded panels with banding bars Mesh 30 X 30

Press-welded panels with banding bars Mesh 30 X 19

Press-welded stair treads Mesh 30 X 30

Press-welded stair treads 30 X 19

Press-welded mats and half-mats

Mesh 30 X 30

Mesh 19 X 40

Mesh 19 X 19

Mesh 30 X 40

Mesh 30 X 19

Galvanized press-welded mats

Galvanized press-welded mats half-moon anti-slip serration

FRP mats and stair treads

FRP mats isophthalic GREY RAL 7035

FRP mats vinylester ORANGE RAL 2002

FRP mats isophthalic GREEN RAL 6010

FRP mats isophthalic BEIGE RAL 1001

FRP mats isophthalic ANTHRACITE RAL 7012

Sanded FRP full gratings

FRP stair treads

FRP stair treads with gritted nosing GREY RAL 7035

FRP stair treads with gritted nosing GREEN RAL 6010

FRP grating with incorporated support bracket

FRP grating with incorporated support bracket GREY RAL 7035

FRP Profiles

Elements for polyester railings

Rubber Gratings

GEI Rubber Top

GEI Rubber Octa

GEI Rubber Access

GEI Rubber Honey Comfort Standard

GEI Rubber Honey Comfort Nitril

GEI Rubber Slic Comfort

GEI Rubber Bub Comfort

GEI Rubber Sports

GEI Rubber Barn (Version 1)

GEI Rubber Barn (Version 2)

GEI Rubber Clean (Version 1)

GEI Rubber Clean (Version 2)

Safety Grids

Safety Grids PS-CRANT

Safety Grids PS-PERF

Safety Grids PS-OFF

Panels with banding bars
Mesh 30 X 30

Panels with banding bars
Mesh 30 X 30 double crescent serrations

Panels with banding bars
Mesh 50 X 100

Panels with banding bars
Mesh 30 X 10

Panels with banding bars
Mesh 30 X 19

Panels with banding bars
Mesh 19 X 19

Panels with banding bars
Mesh 19 X 30 double saw-toothed serration

Panels with banding bars
Mesh 30 X 30 double half-moon serration

Untreated mats without banding bars
roh einfache Halbmond-Auszackung

Untreated mats without banding bars
Double half-moon serration

Press-locked stair treads
Mesh 30 X 30

Press-locked stair treads
Mesh 30 X 30 simple serration

Press-locked stair treads
Mesh 30 X 30 double half-moon serration

Press-locked stair treads
Mesh 30 X 19

Press-locked stair treads
Mesh 19 X 19

Press-locked stair treads
Mesh 30 X 10

Press-locked stair treads
Mesh 30 x 10 simple half-moon serration

Press-locked stair treads
Mesh 19 X 30 double saw-toothed serration

Press-locked stair treads
Mesh 30 X 30
simple anti-slip + nosing 70 mm

Press-locked panels with banding bars
Mesh 30 X 30

Press-locked panels with banding bars
Mesh 30 X 19

Press-locked panels with banding bars
Mesh 19 X 19

Untreated mats without banding bars
Stainless steel 304 untreated

Press-locked treads stainless steel 304 DKP
Mesh 30 X 30

Panels with banding bars
Mesh 30 X 30

Panels with banding bars
Mesh 30 X 19

Panels with banding bars
Mesh 19 X 19

Press-welded panels with banding bars
Mesh 30 X 30

Press-welded panels with banding bars
Mesh 30 X 19

Press-welded stair treads
Mesh 30 X 30

Press-welded stair treads
30 X 19

Galvanized press-welded mats
half-moon anti-slip serration

FRP mats isophthalic
GREY RAL 7035

FRP mats vinylester
ORANGE RAL 2002

FRP mats isophthalic
GREEN RAL 6010

FRP mats isophthalic
BEIGE RAL 1001

FRP mats isophthalic
ANTHRACITE RAL 7012

FRP stair treads with gritted nosing
GREY RAL 7035

FRP stair treads with gritted nosing
GREEN RAL 6010

FRP grating with incorporated support bracket
GREY RAL 7035

GEI Rubber
Top

GEI Rubber
Octa

GEI Rubber
Access

GEI Rubber
Honey Comfort Standard

GEI Rubber
Honey Comfort Nitril

GEI Rubber
Slic Comfort

GEI Rubber
Bub Comfort

GEI Rubber
Sports

GEI Rubber
Barn (Version 1)

GEI Rubber
Barn (Version 2)

GEI Rubber
Clean (Version 1)

GEI Rubber
Clean (Version 2)

Safety Grids
PS-CRANT

Safety Grids
PS-PERF

Safety Grids
PS-OFF

Safety Grids
PS-OVA

Safety Grids
PS-FERM

Safety Grids
PS-PMR

Safety Grids
PS-PMR
with galvanized nosing

Galvanized stair treads
PS-CRANT

Galvanized stair treads
PS-PERF

PS-PMR stair treads
with galvanized nosing
